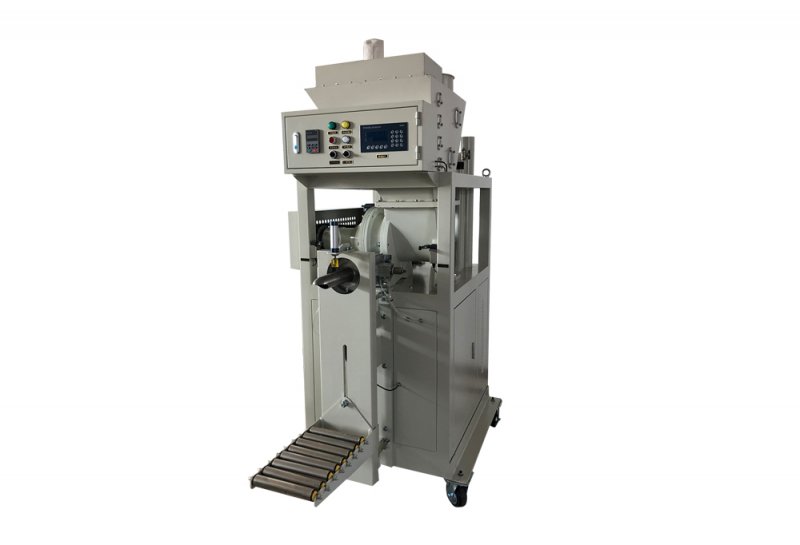

HG 2000微粉包裝機
該機型成熟穩定，是專門用于包裝超微細粉體的包裝設備，根據超微細粉體特性進行設計，由螺旋和葉輪組成的推進結構，可以連續高速度的包裝微細粉體，可迅速排出氣固相微細粉體中所含氣體，具有很高的填充效率，減小了包裝袋體積，通過程序控制變頻調整給料速度，控制給料精度，結合我們自己研發的國家**閥門機構，擁有較高的罐裝準確度和重復性，結構設計合理、操作靈活、閥口袋可廣泛應用于非金屬礦微粉，化工、等領域,非常適用于松裝比小，含氣量大的微細粉體的閥口袋包裝。
HG 2000 micropowder packaging machine is a kind of packaging equipment specially used for packaging ultrafine powder. It is designed according to the characteristics of ultrafine powder, and the propulsion structure composed of screw and impeller can be used to package fine powder continuously and quickly. The gas contained in the fine powder of gas-solid phase can be discharged rapidly, which has high filling efficiency, reduces the volume of the packing bag, adjusts the feed speed through the program control frequency conversion, controls the feeding precision, and combines with the national patent valve organization developed by us. With high accuracy and repeatability, reasonable structure design, flexible operation, valve pocket can be widely used in non-metallic mineral powder, chemical industry, and other fields, very suitable for the valve pocket packaging with small loose packing ratio and large gas content.
性能優勢
1、快捷任意設置包裝重量，操作簡單，幾分鐘便可以熟練操作，（目標值、精計量值、包裝速度）
2、螺旋預壓密排氣加特殊形狀的葉輪機構，解決了微細粉體物料包裝的難題?？刹捎幂^小尺寸的包裝袋，即降低了包裝袋成本，又使包裝袋的外觀整齊美觀。
3、由變頻調速器和精密閥門機構結合來高精度控制輸送速度，實現二級、流量精確控制的填充方法。無論上端料倉物料的多少，均能高速準確包裝。
4、包裝速度快，節省人力，降低成本。企業進行大量生產時包裝能力的提高對降低包裝成本起到重要作用。例如，每包裝d50=5um滑石粉 25kg／袋只需20秒便能完成。
5、厚重堅固的機體結構保證了計量精度的高度穩定。
6、氣流引射技術解決了粉體流動性不好而影響包裝的問題。
8、操作簡單，維修方便。配置一鍵啟動，整個包裝過程時只需一人便能完成。夾袋，高低速灌裝，結束松袋等過程自動完成。
Performance advantage 1, quick and arbitrary setting packaging weight, simple operation, a few minutes can be skilled operation, (target value, precision measurement value, packaging speed) 2, spiral prepress tight exhaust and special shape of impeller mechanism, The problem of the packing of fine powder material is solved. Small size bags can be used, which reduces the cost of packaging bags, and makes the appearance of packaging bags neat and beautiful. 3. The filling method of high precision control of conveying speed is realized by combination of variable frequency governor and precise valve mechanism, and the filling method of two levels and accurate control of flow rate is realized. No matter how much material the upper end of the bin, can be high-speed and accurate packaging. 4, the packing speed is fast, saves the manpower, reduces the cost. The improvement of packaging ability plays an important role in reducing packaging cost. For example, each package of d50=5um talcum powder 25kg/ bag takes only 20 seconds to complete. 5, heavy and solid body structure ensures the high stability of measurement accuracy. 6. Airflow injection technology solves the problem of poor fluidity of powder and its influence on packaging. 8, the operation is simple, the maintenance is convenient. Configure a button to start, the whole packaging process can be completed with only one person. Clip bag, high-low speed filling, end loose bag and other processes automatically completed.
